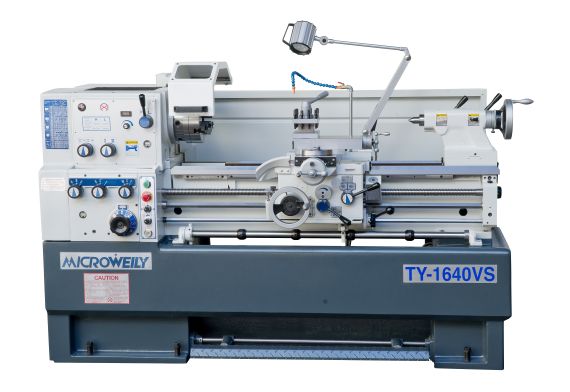

MICROWEILY - TY-1640VS

One piece Meehanite cast base.
Hardened and precision ground gears and bed ways.
Large rigid compound rest for heavy cutting.
Headstock transmission gears driven by spline shafts.
52mm bore, spindle bearings supported in 3 positions.
Automatic pressure lubrication system.
Imperial and metric thread cutting without gear change.
An automatic feed mechanism is mechanically interlocked with the thread cutting lever to prevent damage that would occur through simultaneous engagement.
MT4 quill with tang-drive and drift-slot for tailstock.
The electrical control and coolant system are fitted with electro-magnetic contactors and overload relay protection devices to prevent motor burn-out and ensure safe operation.

CAPACITY	METRIC	IMPERIAL
Distance between centres	1016 mm	40"
Swing over bed	410 mm	16.14"
Swing over cross slide	240 mm	9.44"
Swing in gap	595 mm	23.42"
Length of gap in front of face plate	155 mm	6.10"
Centre height	205 mm	8.07"
Bed width	300 mm	11.81"
HEADSTOCK
Spindle bore	52 mm	2.04"
Spindle nose	D1-6	D1-6
Spindle taper in nose	MT6	MT6
Spindle taper in sleeve	MT4	MT4
Speed range H	125 - 2500 rpm	125 - 2500 rpm
Speed range M	-	-
Speed range L	43 - 850 rpm	43 - 850 rpm
CARRIAGE & COMPOUND
Cross slide travel	230 mm	9"
Compound rest travel	120 mm	4.72"
Leadscrew diameter, thread	ø1 1/4", 4 TPI	ø1 1/4", 4 TPI
THREADS & FEEDS
Imperial pitches 40 Pos	2-56 TPI	2-56 TPI
Metric pitches 53 Pos	0.4-14mm Pitch	0.4-14mm Pitch
Diametral pitches 32 Pos	4-32 DP	4-32 DP
Module pitches 44 Pos	0.4-7 MP	0.4-7 MP
Cross feeds 40 Pos	0.016-0.449mm/rev	0.0006-0.0126"/rev
Longitudinal feeds 40 Pos	0.032-0.898mm/rev	0.0012-0.0252"/rev
TAILSTOCK
Quill diameter	ø54 mm	ø2.12"
Quill travel	120 mm	4.72"
Quill taper	MT4	MT4
MOTORS
Spindle motor	7.5hp	7.5hp
Coolant pump	1/8hp	1/8hp
GENERAL
Electrical rating	600V 8Amp 3Ph 60Hz	600V 8Amp 3Ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Weight	1750 kg	3858 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
