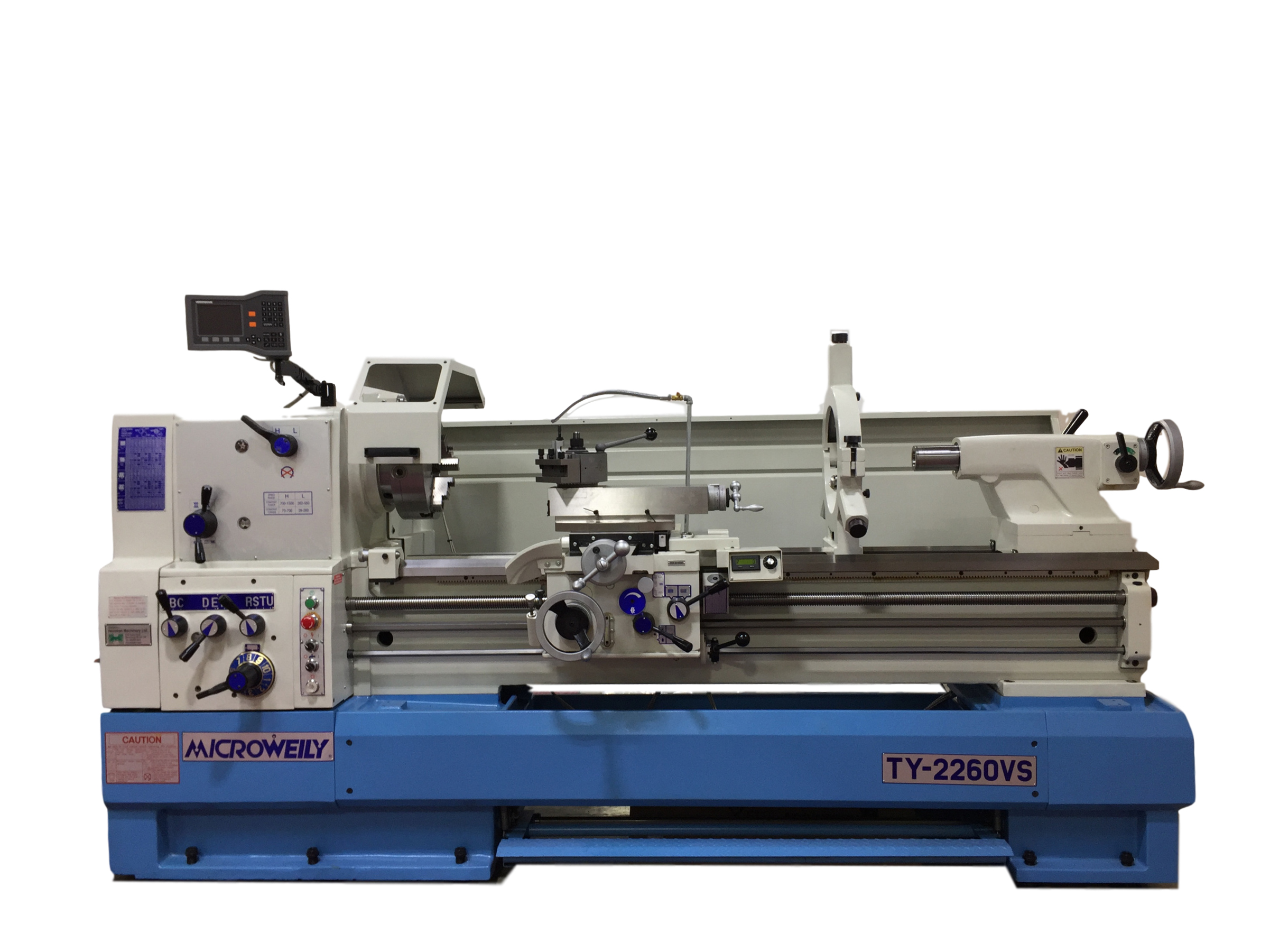

MICROWEILY - TY-2660VS

Variable Speed Centre Lathe

Features

  • Hardened and precision ground gears and bed ways.
  • The cross slide is induction hardened to HRC 52° and precision ground.
  • The slideways between the saddle and bed are TURCITE B coated, reducing friction and saving on power consumption.
  • Two speed tailstock is standard.

Specifications: MICROWEILY - TY-2660VS

Related Products:

CAPACITY METRIC IMPERIAL
Distance between centres 1530 mm 60.23"
Swing over bed 660 mm 25.98"
Swing over cross slide 450 mm 17.71"
Swing in gap 845 mm 33.26"
Length of gap in front of face plate 320 mm 12.59"
Centre height 330 mm 12.99"
Bed width 400 mm 15.74"
HEADSTOCK
Spindle bore 104 mm 4.09"
Spindle nose D1-8 D1-8
Spindle taper in nose MT8 MT8
Spindle taper in sleeve MT5 MT5
Speed range H 70 - 1500 rpm 70 - 1500 rpm
Speed range M - -
Speed range L 26 - 550 rpm 26 - 550 rpm
CARRIAGE & COMPOUND
Cross slide travel 380 mm 14.96"
Compound rest travel 255 mm 10.03"
Leadscrew diameter, thread ø1 1/2", 4 TPI ø1 1/2", 4 TPI
THREADS & FEEDS
Imperial pitches 60 Pos 2-112 TPI 2-112 TPI
Metric pitches 60 Pos 0.2-14mm Pitch 0.2-14mm Pitch
Diametral pitches 50 Pos 4-112 DP 4-112 DP
Module pitches 50 Pos 0.2-7 MP 0.2-7 MP
Cross feeds 50 Pos 0.0185-0.52mm/rev 0.0007-0.01935"/rev
Longitudinal feeds 50 Pos 0.037-1.04mm/rev 0.0014-0.0387"/rev
TAILSTOCK
Quill diameter ø75 mm ø2.95"
Quill travel 160 mm 6.29"
Quill taper MT5 MT5
MOTORS
Spindle motor 15hp 15hp
Coolant pump 1/8hp 1/8hp
GENERAL
Electrical rating 220V 35Amp 3Ph 60Hz 220V 35Amp 3Ph 60Hz
Electrical approval CSA SPE-1000 CSA SPE-1000
PHSR exemption letter valid in Ontario valid in Ontario
Weight 2380 kg 5247 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • Headstock chuck guard
  • Coolant system
  • Rear splash guard
  • Micro stop
  • Steady rest with roller bearings 4-12"
  • 2 Speed tailstock
  • Levelling bolts, nuts & pads

Included Accessories

  • 12" 3-Jaw D1-8 self centering precision steel chuck, direct mount
  • GS3-C Klopfer quick change precision tool post
  • CD-32150 Tool holder for tool post
  • CD-40170 Tool holder for tool post
  • CH-40160 Bar holder for tool post
  • 2-Axis digital readout installed
  • 15KVA Transformer for 600V Sec 220V

Optional Accessories

  • 16" 4-Jaw D1-8 independent chuck, direct mount
  • Follow rest
  • Taper Attachment
  • LED Machine lamp
