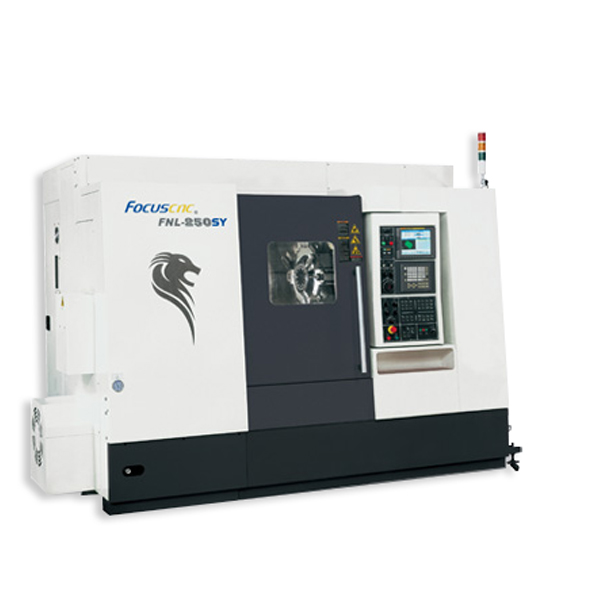

FOCUS CNC - FNL-250SY

CNC Turning / Milling Machine - Linear Ways

Features

Designed for Easy and Convenient Operations

  • The space within the machining zone has been maximized to prevent any tool interference and provide the utmost flexibility and substantially reduce any chance of collision between the cutting tools and the machine.

Axis Pathways

  • Rexroth roller type linear guideways ensure the highest accuracy is maintained during high speed machining. These high hardness guideways provide excellent rigidity and impart very fast linear motion.

Spindle Hole Capacity

  • The high speed high precision spindle combines front angular ball bearing and rear single row roller bearing to ensure optimum running and cutting precision even during extended periods of machining.
  • The 8“ spindle is designed with a spindle bore of 77mm and accepts bar stock to 65mm diameter.

High Rigidity Power Turret

  • New high rigidity BMT power turret and tool holder is fixed using four bolts and a positioning key for the ultimate in stable cutting. This unit uses an oversized curved tooth clutch to enhance rigidity and accuracy of cutting tools during machining.

High Precision Built in Spindle (Option)

  • Built in spindles do not cause the vibrations transmitted by belt drives. Built in spindles offer lower inertia and quicker acceleration/deceleration. An oil cooler is standard on built in spindles for reduced thermal deformation.

Focus FBL, FNL-250Y.SY, 320Y.SY (201507 Ver.3).pdf

Specifications: FOCUS CNC - FNL-250SY

Related Products:

CAPACITY METRIC IMPERIAL
Swing over bed 600 mm 23.62"
Swing over covers 600 mm 23.62"
Max turning diameter ø460 mm ø18.11"
Max turning length 558 mm 21.96"
Max bar diameter ø65 mm ø2.55"
HEADSTOCK
Chuck diameter ø203 mm (*254 mm) ø8" (*10")
Spindle nose A2-6 A2-6
Spindle thru hole diameter ø77 mm ø3.03"
Max spindle speed 4500 rpm 4500 rpm
Min spindle indexing angle C-Axis 0.001° 0.001°
Transmission belt (*built-in) belt (*built-in)
Spindle bearing diameter (front) ø ø
TRAVELS
X-Axis travel 310 mm 12.20"
Y-Axis travel ±55mm ±2.16"
Z-Axis 620 mm 24.40"
ZB-Axis 650mm 25.59"
FEEDRATE
Rapid traverse X-Axis 24 M/min 944.88"/min
Rapid traverse Y-Axis 20 M/min 787.40"/min
Rapid traverse Z-Axis 30 M/min 1181.10"/min
Rapid traverse ZB-Axis 20 M/min 787.40"/min
TURRET
Number of tools 12 12
Turret type BMT 60 BMT 60
Turning tool size 25 x 25 mm 0.98 x 0.98"
Boring tool size 40 mm 1.57"
Tool change time 0.2 sec 0.2 sec
Max rotary tool speed 4000 rpm (*6000 rpm) 4000 rpm (*6000 rpm)
SUB SPINDLE
Chuck diameter ø152.40 mm ø6"
Max bar diameter ø45 mm ø1.77"
Sub spindle nose A2-5 A2-5
Sub spindle hole diameter ø52 mm ø2.04"
Sub spindle speed 6000 rpm 6000 rpm
Min sub spindle indexing angle C-Axis 0.001° 0.001°
Transmission belt belt
Sub spindle bearing diameter (front)
TAILSTOCK
Tailstock travel – –
Quill travel – –
Quill diameter – –
Quill taper hole – –
Quill drive – –
Tailstock positioning – –
MOTORS
Main spindle motor (30 min rating) 11kW (15kW) 14.75hp (20.11hp)
Sub spindle motor (30 min rating) 5.5kW (7.5kW) 7.37kW (10.05hp)
Rotary tool motor 2.7kW (*4.5kW) 3.62hp (*6.03hp)
Coolant pump motor
X / Y-Axis servo motor 2.7kW / 2.7kW 3.62hp / 3.62hp
Z / ZB-Axis servo motor 2.7kW / 2.7kW 3.62hp / 3.62hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 40kVA 40kVA
Voltage required 600V or 220V 600V or 220V
Coolant pressure 10 bar 145 psi
Coolant tank capacity
Hydraulic tank capacity
CONTROLLER
CNC Control Fanuc Fanuc
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
Refer to literature for tool interference considerations.

Standard Accessories

  • 8" Hydraulic chuck
  • 6" Hydraulic chuck (sub spindle)
  • 6" & 8" Hard jaw set
  • 6" & 8" Soft jaw set
  • Boring bar holder 5pc
  • Bi-directional boring bar holder
  • Face holder
  • Tool sleeve set (8-32)
  • O.D. tool holder 3pc
  • Extended O.D. tool holder 3pc
  • Coolant system
  • High pressure coolant 10 bar
  • Movable coolant tank
  • Grease lubrication system
  • Chip conveyor and bucket
  • MPG Hand wheel
  • Foot pedal for hydraulic chuck
  • Call light (3 color)
  • LED Machine lamp
  • Levelling bolts, nuts & pads
  • Tool kit

Included Accessories

  • Oil skimmer
  • Foot pedal for sub spindle
  • Transformer

Optional Accessories

  • 10" Hydraulic chuck
  • CF Axis
  • Radial power tooling holder
  • Axial power tooling holder
  • Collet chuck
  • Centralizing lubrication system
  • Oil mist collector
  • Parts catcher (main spindle)
  • Parts catcher (sub spindle)
  • Manual tool setting probe (main spindle)
  • Manual tool setting probe (sub spindle)
  • Auto tool setting probe (main spindle)
  • Bar feeder and interface
  • Automatic door (pneumatically driven)
  • CE safety door switch
