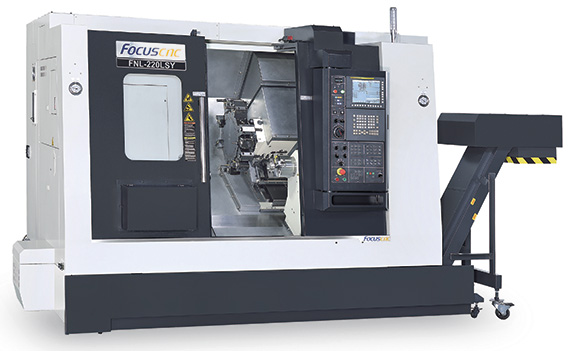

FOCUS CNC - FNL-220Y

Features

Focus presents a turning and milling lathe machine that delivers superior accuracy and rigidity.

• Machine is designed with a 30° slant bed, rigid linear way structure and programmable tailstock.
• 12 station turret with optional 16 station.
• Includes a 60° compound Y-axis, slant bed design with roller linear ways. Linear roller guideways ensure the highest accuracy during high-speed machining. These guideways provide 30% stronger rigidity than regular ball ways.
• Turning and milling with first and second operations with one machine.

Specifications: FOCUS CNC - FNL-220Y

Related Products: FNL-220LY FNL-220LSY MetricImperial

CAPACITY	METRIC	IMPERIAL
Swing over bed	620 mm	24.40"
Swing over covers	620 mm	24.40"
Max turning diameter	ø270 mm	ø10.62"
Max turning length	300 mm	11.81"
Max bar diameter	ø52 mm (*65 mm)	ø2.04" (*2.55")
HEADSTOCK
Chuck diameter	ø203 mm	ø8"
Spindle nose	A2-6	A2-6
Spindle thru hole diameter	ø62 mm (*77 mm)	ø2.44" (*3.03")
Max spindle speed	4500 rpm	4500 rpm
Min spindle indexing angle C-Axis	0.001°	0.001°
Transmission	belt	belt
Spindle bearing diameter (front)	ø100 mm (*110 mm)	ø3.93" (*4.33")
TRAVELS
X-Axis travel	200 mm	7.87"
Y-Axis travel	110 mm (±55mm)	4.33" (±2.16")
Z-Axis travel	350 mm	13.78"
ZB-Axis	–	–
FEEDRATE
Rapid traverse X-Axis	30 M/min	1181.1"/min
Rapid traverse Y-Axis	10 M/min	393.70"/min
Rapid traverse Z-Axis	30 M/min	1181.10"min
Rapid traverse ZB-Axis	–	–
TURRET
Number of tools	12 (*16)	12 (*16)
Turret type	BMT 45	BMT 45
Turning tool size	20 x 20 mm	0.78 x 0.78"
Boring tool size	32 mm	1.25"
Turret indexing time (1 station swivel)	0.28 sec 30± (single step)	0.28 sec 30± (single step)
Max rotary tool speed	6000 rpm (Fanuc) / 4500 rpm (Siemens)	6000 rpm (Fanuc) / 4500 rpm (Siemens)
SUB SPINDLE
Chuck diameter	–	–
Max bar diameter	–	–
Sub spindle nose	–	–
Sub spindle hole diameter	–	–
Sub spindle speed	–	–
Min sub spindle indexing angle C-Axis	–	–
Transmission	–	–
Sub spindle bearing diameter (front)	–	–
TAILSTOCK
Tailstock travel	350 mm	13.77"
Quill travel	100 mm	3.93"
Quill diameter	ø85 mm	ø3.34"
Quill taper hole	MT5	MT5
Quill drive
Tailstock positioning	programmable	programmable
MOTORS
Spindle motor (30 min rating)	11kW (15kW)	14.75hp (20.11hp)
Sub spindle motor (30 min rating)	–	–
Rotary tool motor (30 min rating)	3.7kW (5.5kW)	5hp (7.5hp)
Coolant pump motor	1.17kW	1.56hp
X / Y-Axis servo motor	1.8kW / 1.8kW	2.41hp / 2.41hp
Z /ZB-Axis servo motor	1.8kW / –	2.41hp / –
GENERAL
Electrical approval	CSA SPE-1000	CSA SPE-1000
Power required	30kVA	30kVA
Voltage required	600V or 220V	600V or 220V
Coolant pressure	9.5 bar	137 psi
Coolant tank capacity	210 L	55 US gal
Hydraulic tank capacity
CONTROLLER
CNC Control	Fanuc / Siemens	Fanuc / Siemens
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice. Refer to literature for tool interference considerations.

Standard Accessories

• 8" Hydraulic chuck
• 8" Hard jaw set
• 8" Soft jaw set
• Servo indexing turret
• Boring bar holder 3pc
• Face holder
• O.D. Tool holder 3pc
• Extended O.D. tool holder
• Tool sleeve set ø8-25
• Live centre MT5
• Coolant system
• High pressure coolant 9.5 bar
• Movable coolant tank
• Lubrication system
• Chip conveyor and bucket
• MPG Hand wheel
• Programmable tailstock
• Foot pedal for hydraulic chuck
• Call light (3 color)
• LED Machine lamp
• Levelling bolts, nuts & pads
• Tool kit

Included Accessories

• Oil skimmer
• Transformer

Optional Accessories

• Radial power tooling holder
• Axial power tooling holder
• Collet chuck
• Oil mist collector
• Parts catcher
• Foot pedal switch for tailstock
• Renishaw auto tool pre-setter
• Manual tool setting probe
• Manual guide i (Fanuc)
• Shop turn (Siemens)
• Bar feeder interface
• Automatic door (pneumatically driven)
• CE Safety door switch
