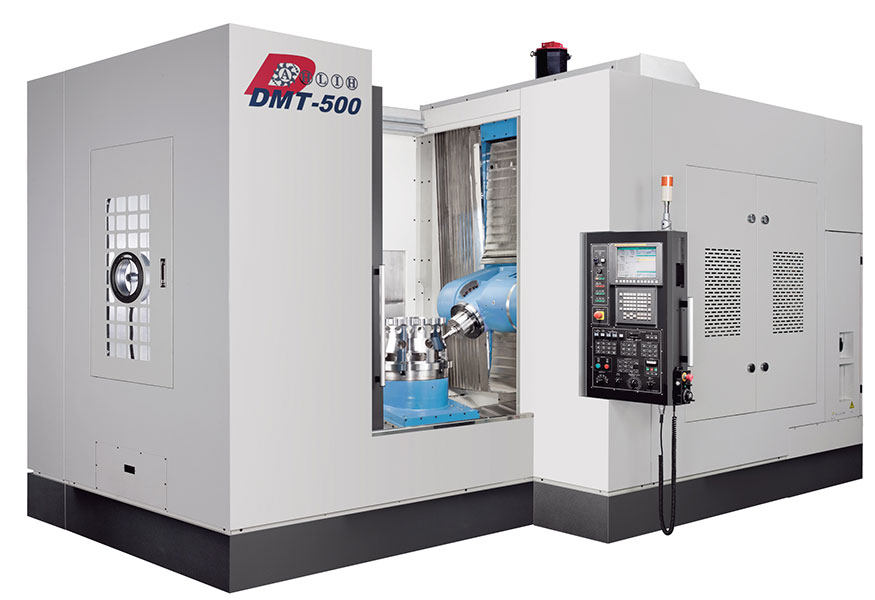

The DMT-500 is designed to perform complex milling and turning operations in one setup. This machine reduces the use of jig and fixture. Another benefit is that it saves time and minimizes accuracy errors in secondary machining.
| 4TH / 5TH AXIS - Built-in | METRIC | IMPERIAL | |
| Table diameter | ø500 mm | 19.68" | |
| T-slot number (width) | 6 (18mm) | 6 (0.70") | |
| Max workpiece size | ø730 x 950 mm | ø28.74 X 37.40" | |
| Max table load | 800 kg | 1764 lb | |
| Max turning diameter (O.D.) | ø730 mm | 28.74" | |
| B-Axis (spindle head tilts) | |||
| Angle | 150° (-30° to +120°) | 150° (-30° to +120°) | |
| Motor | Servo 4.2kW | Servo 5.6hp | |
| Rapid traverse | 50 rpm | 50 rpm | |
| Min indexing angle | 0.0001° | 0.0001° | |
| C-Axis (rotary table) | |||
| Angle | 360° (continuous) | 360° (continuous) | |
| Motor | Servo 9.8kW | Servo 13hp | |
| Max speed of turning shaft | 600 rpm | 600 rpm | |
| Rapid traverse | 50 rpm | 50 rpm | |
| Min indexing angle | 0.0001° | 0.0001° | |
| TRAVELS | |||
| X-Axis (table forward & back) | 1000 mm | 39.37" | |
| Y-Axis (spindle head right / left) | 800 mm | 31.49" | |
| Z-Axis (spindle head up & down) | 950 mm | 37.40" | |
| B-Axis rotation center to table center (X-Axis at home position) | 990 mm | 38.97" | |
| B-Axis rotation center to table center (at limit end) | -10 mm | -0.39" | |
| B-Axis rotation center to table surface | 150 - 1100 mm | 5.90 - 43.30" | |
| Distance spindle nose to table (B-Axis at 90°, X-axis at home position) | 675 mm | 26.57" | |
| Distance spindle nose to table (B-Axis at 0°) | -165 to 785 mm | -6.49 to 30.90" | |
| Guideway type X-Axis | linear roller | linear roller | |
| Guideway type Y-Axis | linear roller | linear roller | |
| Guideway type Z-Axis | linear roller | linear roller | |
| FEEDRATE | |||
| Rapid traverse X-Axis | 30 M/min | 1181"/min | |
| Rapid traverse Y-Axis | 30 M/min | 1181"/min | |
| Rapid traverse Z-Axis | 30 M/min | 1181"/min | |
| SPINDLE | |||
| Drive system | built-in | built-in | |
| Spindle motor (30 min rating) | 11kW (15kW) | 14.75hp (20hp) | |
| Spindle taper | HST63 | HST63 | |
| Speed range | 0 - 12000 rpm | 0 - 12000 rpm | |
| Rapid traverse B-Axis | 50 rpm | 50 rpm | |
| TOOL CHANGER - Arm Type | |||
| Tool storage capacity | 40 tools (*60) | 40 tools (*60) | |
| Max tool weight | 7 kg | 15.43 lb | |
| Max tool length | 300 mm | 11.81" | |
| Max tool diameter | ø100 mm | ø3.93" | |
| Max tool diameter (adjacent empty) | ø130 mm | 5.11" | |
| Tool selection | random | random | |
| Tool to tool change time | 3 sec | 3 sec | |
| ACCURACY | |||
| Positioning accuracy | |||
| Repeatability accuracy | |||
| DRIVE MOTORS | |||
| Feed drive X-Axis | Servo 7kW | Servo 9.4hp | |
| Feed drive Y-Axis | Servo 7kW | Servo 9.4hp | |
| Feed drive Z-Axis | Servo 9kW | Servo 12.0hp | |
| Feed drive B-Axis | Servo 4.2kW | Servo 5.6hp | |
| Feed drive C-Axis | Servo 9.8kW | Servo 13.1hp | |
| GENERAL | |||
| Electrical approval | CSA SPE-1000 | CSA SPE-1000 | |
| Power required | 75kVA | 75kVA | |
| Voltage required | 600V or 200V | 600V or 200V | |
| Air pressure required | 5-7 bar | 75-110 psi | |
| Coolant tank capacity | 500 L | 132.08 US gal | |
| CONTROLLER | |||
| CNC Control | FANUC | FANUC | |
| *Option | |||
| The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice. | |||
