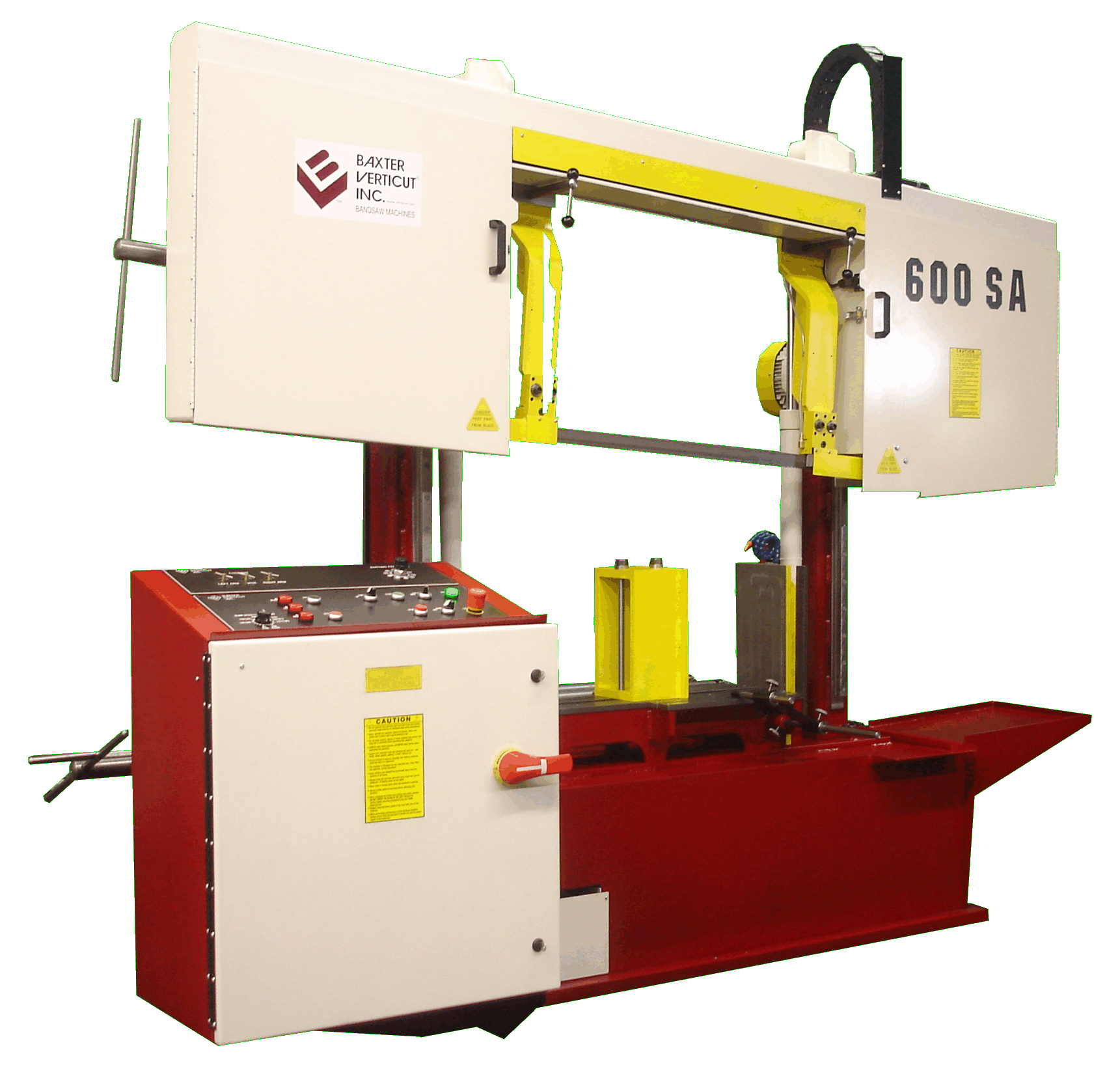

BAXTER - 600SA

Blade canted at 4° to aid in cutting structural steel and flats
Front and rear vertical vises to securely clamp bundles of material
Double column machine provides maximum capacity and rigidity
Design utilizes linear bearings for high stiffness and smooth motion
Saw up travel can be set to minimize distance between the blade and the top of the material
Saw down travel can be set to allow notching of blocks
Semi-automatic cut cycle
Manual saw control, saw up, rapid saw down, saw cut
Cutting feed rate hydraulically adjusted
Load sensing valve to stop feed, if the blade starts to overload (typically cutting structural shapes)
Power disconnect on machine
Steel wheels with ductile iron hubs
Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
Direct blade drive using a planetary gear box for a high efficiency design
Electric system uses only CSA/UL approved components and is electrically approved

CUTTING CAPACITY	METRIC	IMPERIAL
Round at 0°	610 mm	24"
Rectangular	610 x 710 mm	24 x 28"
SPECIFICATIONS
Blade size	41 x 6096 mm	1 1/2" x 20'
Blade speeds	18 to 110 M/min	60 to 360 ft/min
Blade tension (spring compensated)	172 Mpa	25,000 psi
Blade guides	carbide with rollers	carbide with rollers
Blade drive motor	5 kW	7.5 hp
Hydraulic drive	2.2 kW	1hp
Table height	665 mm	26 1/4"
Max work load	2700 kg	6000 lb
GENERAL
Electrical rating	575V 3ph 60Hz	575V 3ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Machine weight	1860 kg	4100 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
